SCHEDA PRODOTTO



Codice Articolo
A0009521
Produttore
ASUS
Part Number
90MB1D50-M0EAY0
EAN Code
4711387008249
Disponibilità
Negozio

0
Magazzini Esterni (Locale/Centrale)
0 / 3

IL NOSTRO PREZZO
€ 269,00
(IVA compresa)
Ultimo Aggiornamento Prezzo
16/04/2024

TEMPI DI CONSEGNA:

Disponibile NEGOZIO
Giorno stesso dell'ordine o giorno successivo

Disponibile MAGAZZINO LOCALE
Giorno stesso dell'ordine o giorno lavorativo successivo

Disponibile MAGAZZINO ESTERNO
Due giorni lavorativi
I dati tecnici sono forniti direttamente dal Produttore e possono subire variazioni senza preavviso

Copyright(c) 1999-2024 - 3D Computer di Svetina Davide

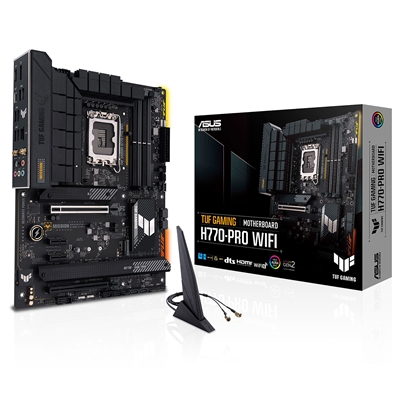

ATX (LGA-1700) Mainboard ASUS mod. TUF GAMING H770-PRO WIFI
CPU
Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset
Intel® H770 Chipset

Memory
4 x DIMM, Max. 128GB, DDR5 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II

Graphics
1 x DisplayPort
1 x HDMI® port
Supports max. 4K 60Hz as specified in DisplayPort 1.4
Supports 4K 60Hz as specified in HDMI 2.1

Expansion Slots
Intel® 13th & 12th Gen Processors:
- 1 x PCIe 5.0 x16 slot
Intel® H770 Chipset:
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 2 x PCIe 3.0 x1 slots

Storage
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® 13th & 12th Gen Processors:
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
Intel® H770 Chipset:
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports

Ethernet
1 x Intel® 2.5Gb Ethernet
TUF LANGuard

Wireless & Bluetooth
Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.2

USB
Rear USB (Total 7 ports):
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
- 2 x USB 3.2 Gen 2 ports (2 x Type-A)
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
Front USB (Total 7 ports):
- 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
- 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features:
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio Cover

Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port

Internal I/O Connectors
Fan and Cooling related:
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 4 x 4-pin Chassis Fan headers
Power related:
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- 1 x 4-pin +12V Power connector
Storage related:
- 4 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
USB:
- 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
- 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous:
- 3 x Addressable Gen 2 headers
- 1 x Aura RGB header
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x 20-3 pin System Panel header with Chassis intrude function
- 1 x Thunderbolt™ (USB4®) header

Special Features
ASUS TUF PROTECTION:
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- Safeslot Core+
- Stainless-Steel Back I/O
ASUS Q-Design:
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution:
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY:
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot Core+
- SafeDIMM
AURA Sync:
- Aura RGB header
- Addressable Gen 2 headers

Software Features
ASUS Exclusive Software
Armoury Crate:
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Two-Way AI Noise Cancelation
- Power Saving
AI Suite 3:
- DIGI+ VRM
- PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables:
- 2 x SATA 6Gb/s cables
Miscellaneous:
- 1 x ASUS Wi-Fi moving antenna
- 1 x TUF GAMING sticker
- 2 x M.2 Rubber Packages
- 2 x Screw package for M.2 SSD
Documentation:
- 1 x TUF Certification card
- 1 x User guide

Operating System
Windows® 11, Windows® 10 64-bit

Form Factor
ATX Form Factor
12 inch x 9.6 inch (30.5 cm x 24.4 cm)
